NXP Semi­con­duc­tors

is end­ing the inter­nal PCM1.x man­u­fac­tur­ing of 8‑pin con­tact mod­ules.

Dis­con­tin­u­a­tion Infor­ma­tion NXP
202306046DN: NXP MIFARE SAM 8‑pin con­tact chip mod­ules

This affects all sales items deliv­ered in PCM 8 Con­tact (SOT658) deliv­ery type of MIFARE SAM AV2 and
MIFARE SAM AV3. The machines and mate­ri­als used for the assem­bly of these mod­ule
types will be dis­mount­ed at NXP Semi­con­duc­tors man­u­fac­tur­ing site by end of the 2023.
After dis­con­tin­u­a­tion, NXP Semi­con­duc­tors will sup­ply sawn sil­i­con wafer mate­ri­als to
cus­tomers. NXP Semi­con­duc­tors part­ner for the pack­aged 8 Con­tact Mod­ule is AdvanIDe.

AdvanIDe releas­es a new Mod­ule Pack­ag­ing Ser­vice for NXP MIFARE SAM AV2 and MIFARE SAM AV3 IC from NXP.
AdvanIDe has qual­i­fied a new 8 Con­tact Mod­ule (AC8G2) for the NXP MIFARE SAM.

A8CG
The reel size is around 8 K pcs. Small­er requests could be han­dled with the well known AdvanIDe cut ser­vice for small­er reel QTYs.

MIFARE SAM AV3
MO NXP MF4SAM3U15/9BA6AU AC8G2
MIFARE SAM AV2
MO NXP P5DF081UA/T1AD2060 AC8G2

Prod­uct table and relat­ed part num­bers from NXP and AdvanIDe below

12 NC
Descrip­tion
Type
AdvanIDe part num­ber
AdvanIDe descrip­tion
9354 552
49005
MF4SAM3U15/9BA659
MIFARE SAM AV3
203501057
MO NXP MF4SAM3U15/9BA659 AC8G2
9352 931
19005
P5DF081X0/
T1AD2060
MIFARE SAM AV2
203501050
MO NXP P5DF081UA/T1AD2060 AC8G2
9352 953
67005
P5DF081X0/
T1AR1070
MIFARE SAM AV2
203501055
MO NXP P5DF081UA/T1AR1070 X‑MODE AC8G2

NXP MIFARE® SAM

The NXP MIFARE secure access mod­ules (SAMs) offer secure stor­age and com­mu­ni­ca­tion in mul­ti-oper­a­­tor infra­struc­tures.
The MIFARE SAM AV3 is the lat­est addi­tion to the MIFARE SAM hard­ware port­fo­lio, designed for flex­i­ble per­for­mance in today’s IoT.
It offers stronger pro­tec­tion of high­ly sen­si­tive keys and allows for high­er appli­ca­tion per­for­mance in direct pass-through X‑mode. It comes with built-in sup­port for NXP’s MIFARE® ICs and NXP’s NTAG® DNA, ICODE® DNA and UCODE® DNA prod­ucts.
It is an ide­al add-on for edge com­put­ing nodes and end nodes such as read­er and POS ter­mi­nals, toll gates and door locks.

More infor­ma­tion about the SAM on mifare.net web­site from NXP: https://www.mifare.net/en/products/infrastructure-components/mifare-sam‑2/
AdvanIDe is a proud MIFARE Pre­mi­um Part­ner of MIFARE from NXP: https://www.mifare.net/en/partners/premium-partner‑3/advanide/
Find more on MIFARE SAM AV3 on NXP Web­site: https://www.nxp.com/products/rfid-nfc/mifare-hf/mifare-sam:MC_71422

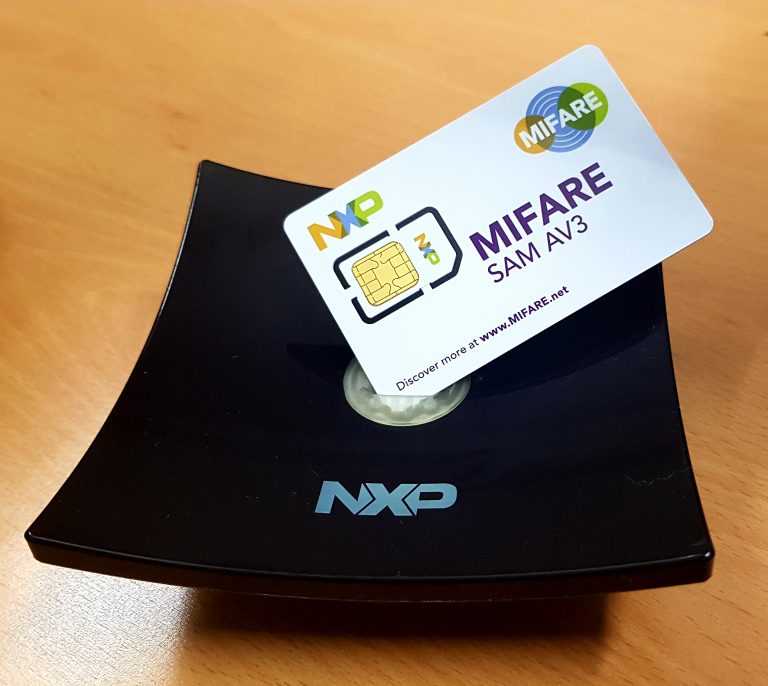

TOOL – PEGODA

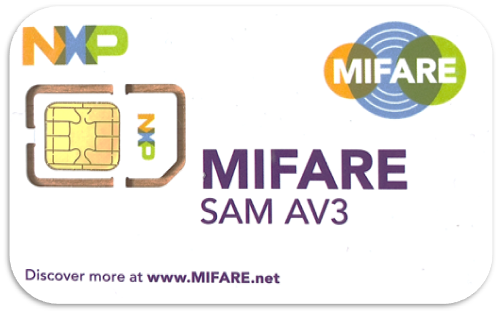

SAM AV3 PUNCHED CARD

The third – gen­er­a­tion MIFARE Secure Access Mod­ule (SAM):

  • Secures access keys and pro­tects assets.
  • Built – in sup­port for MIFARE ICs and NXP’s “DNA” range of prod­ucts from the NTAG, ICODE, and UCODE fam­i­lies
  • for embed­ded sys­tems such as con­sumer devices, read­er and POS ter­mi­nals, toll gates, or door locks

KEY FEATURES:

  • Com­pat­i­ble with MIFARE SAM AV2
  • Sup­ports lat­est secu­ri­ty fea­tures of MIFARE MIFARE DES­Fire DES­Fire Light, MIFARE Plus EV1 and ® MIFARE Ultra­light   EV1
  • Sup­ports UCODE® DNA, ICODE® DNA, and NTAG® DNA
  • 128 key entries for sym­met­ric cryp­tog­ra­phy, 3 key entries for RSA, 8 key entries for ECC asym­met­ric cryp­tog­ra­phy and 48 EMV CA keys
  • Com­mon Cri­te­ria EAL6+ (HW), MIFARE Secu­ri­ty Cer­tifi­ca­tion (SW), FIPS 140–2 CAVP } Avail­able in wafer, AC8 smart card mod­ule or HVQFN32 pack­age

TARGET APPLICATIONS

  • Pub­lic trans­port
  • Access man­age­ment
  • Con­sum­ables and part iden­tifi­ca­tion
  • Orig­i­nal­i­ty and secu­ri­ty pro­tec­tion for con­sumer devices

KEY BENEFITS

  • Strongest pro­tec­tion of high­ly sen­si­tive keys (e.g. Mas­ter Keys)

Datasheet OPEN

Fly­er OPEN

Quick start up guide OPEN
